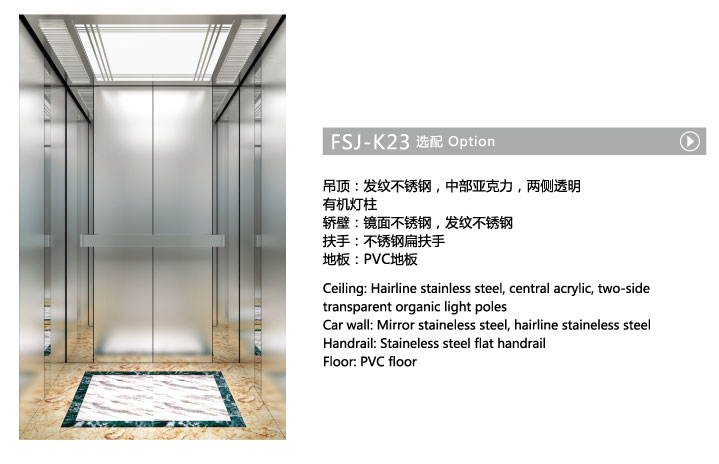

FSJ-K23
  • >
  • PRODUCTS
  • >
  • FSJ-K23


Product detail:

1.Powerful master of 32-digit integrated control system:
We apply special-purpose elevator integrative control system. High-speed operation goes through 32-digit DSP main-board. We execute variable frequency, variable voltage control to the elevators. It forms plural and characteristic control between traction machine, car signal, load detection, floor signal. We smoothly and steadily operate the elevators. We offer the best and comfortable travel experience.
2.IC card management system:
1)Modular design has greatly reduced the size of control cabinet
2)Strong anti-interference ability enhances the reliability
3)Thin control cabinet can effectively save sapce and improve space utilization rate
3.VVVF door operator system:
1)Advanced VVVF variable frequency technology ensures the smooth and peaceful opening and closing of elevator doors.
2)Digital variable frequency results in low trouble rate with accurate speed regulation. It brings about the more stable and smooth door opening/closing.
3)Optical encoder is accurate in catching and stable in operation. Toothed belt transmission is peaceful with low noise.
4.Synchronous and gearless traction machine:
1)Safety
2)Health
3)Energy saving
5.Automatic lighting system of elevator car:
Fushija elevator applies LED energy-saving lamp. When nobody is in the elevator car for more than 15 minutes, it automatically cuts off the car lighting. When it senses that somebody calls the

elevator, it re-starts the lighting. It thus saves any unnecessary lighting power consumption.

6.Energy feedback system:
We convert mechanical energy in motion load into regenerative clean electric energy through energy feedback device. It feeds back to AC power grid supplies other neighboring power equipments. It thus fulfills energy-saving.

7.Environment-friendly materials are utilized
We apply new shock-absorbing composite stainless steel materials with low carbon environment-protection, solid structure, fine damping and noise-reducing effects.Fushijia elevators are durable and beautiful.


Specification(Passenger elevator with machine room):

Load  (kg) Speed(m/s) Car net size(mm) C.W*C.D Door opening size(mm) OP*OP.H Hoistway size(mm) HW*HD Machine room size(mm) MW*MD*HT PP OH Others size(mm)
D1 D2 L1 L2 L3 L4 L5
630(550) 1 1400*1030 800*2100 1850*1750 2500*3330*2300 1500 4450 670 850 400 803 0 400 400
800 1 1400*1350 800*2100 1850*2050 2500*3650*2300 1500 4450 830 1010 400 803 0 400 400
1.5 1600 4600 520 520
1.75 1700 4650
2.0 1900*2100 2500*3700*2300 2000 5000 830 1035 460 803 0
900 1 1600*1350 900*2100 2150*2100 2800*3750*2300 1500 4450 830 1010 400 903 0 400 400
1.5 1600 4600 520 520
1.75 1700 4650
2.0 2000 5000 830 1035 460 903 0
1000 1 1600*1500 900*2100 2200*2200 2800*3850*2300 1500 4450 905 1085 400 903 0 400 400
1.5 1600 4600 520 520
1.75 1700 4650
2.0 2000 5000 903 1085 460 903 0
2.5 2600 5600
1150 2.0 2000*1350 1100*2100 2600*2200 3250*3750*2300 2000 5000 803 1035 460 1103 500 520 520
2.5 2600 5600
1350 2.0 2000*1500 1100*2100 2600*2300 3250*3950*2300 2000 5000 903 1110 460 1103 500 520 520
2.5 2600 5600
1600 2.0 2000*1750 1100*2100 2600*2500 3250*4150*2300 2000 5000 1030 1210 460 1103 500 520 520
2.5 2600 5600






















Specification(machine rooless Passenger elevator):

Load(kg) Persons Speed(m/s) Entrance Car net size Shaft inside dimension
(JJ*HH)mm (AA*BB)mm (AH*BH)mm PP OH
630 8 1.0 800*2100 1300*1250 2250*1700 1600 4000
1.5/1.75 1800 4300
800 10 1.0 800*2100 1400*1400 2400*1900 1600 4200
1.5/1.75 1800 4500
1000 13 1.0 900*2100 1500*1600 2500*2100 1600 4200
1.5/1.75 1800 4500
1600 21 0.63/1.0 1000*2100 1900*1850 3000*2400 1600 4600
2.0/2.5


Function:

Standard function:
Travel function 1 VVVF drive
2 VVVF door operator
3 Independent running
4 Automatic pass without stop
5 Automatically adjust door opening time
6 Reopen with hall call
7 Express door closing
8 Car stops and door open
9 Car arrival gong
10 Command register cancel
Safety function 11 Light curtain protection
12 Designated stop
13 Overload holding stop
14 Anti-stall timer protection
15 Start protection control
16 Inspection operation
17 Fault self-diagnosis
18 Repeated door closing
19 Up/down over-run and final limit protection
20 Down over-speed protection device
21 Up over-speed protection device
Human-machine Interface 22 Micro-touch button for car call and hall call
23 Floor and direction indicator inside car
24 Floor and direction indicator
Emergency function 25 Emergency lighting
26 Inching running
27 Five way intercom
28 bell
29 Fire emergency return
Energy-saving function 30 Car fans/lighting automatic shut-off
31 Remote shut-off
Optional Function
Emergency function 1 Leveling when power off
Travel function 2 Anti-nuisance
3 Open the door in advance
4 Direct parking
5 Group control function
6 Duplex control
7 On-duty peak service
8 Off-duty peak service
9 Door open time extending
Human-machine Interface 10 Voice announcer
11 Car assistant operation box
12 Operation box for the handicapped
13 Intelligent calling service
14 IC card control function
Monitor function 15 Remote monitor
16 Remote control
17 Car camera

Note:The above data is only for your reference. If you have any special request ,pls do not hesitate to contact with us anytime .
