Product detail:

1. Top-grade technology:

The prior use of VVVF system, research fruits of human-machine engineering and the advanced manufacture technology bring about the more perfectly safe and comfortable Fushijia escalator. Meanwhile it results in the more convenient energy-saving and repair to vast users.

2.Very comfortable travel:
The comfortable product running is ensured by the advanced control system and decelerator, superior drive chain and precision installation craft and tech.

3.Perfect cascade, taste Classic:
It applies fine and exquisite craft of overall stainless steel step, special surface treatment technique, polishing and anti-skid treatment to addendum. It features as attractive, easy maintenance, firm material, anti-oxidation, rust-resistant etc.


30 degree escalator specification:

Model NO. FSJ30-600(4000P/Hour) FSJ30-800(6750P/Hour) FSJ30-1000(9000P/Hour)
Travel height Static load Motor Static load Motor Static load Motor
N.W. R1 R2 Pauer N.W. R1 R2 Pauer N.W. R1 R2 Pauer
MM KN KN KN KN KN KN KN KN KN KN KN KN
3000 57 46 41 5.5 59 52 47 5.5 60 56 50 5.5
3500 60 49 44 5.5 63 56 50 5.5 64 60 53 8.0
4000 64 52 47 5.5 67 60 54 5.5 67 64 57 8.0
4500 68 56 50 5.5 71 64 57 8.0 71 67 60 8.0
5000 71 59 53 8.0 74 68 60 8.0 74 71 64 11
5500 75 62 56 8.0 82 74 66 11 82 77 69 11
6000 79 65 59 11 86 78 69 11 85 81 72 11
Model NO. A B C D E
FSJ30-600 600 837 1200 1260 1837
FSJ30-800 800 1037 1400 1460 2037
FSJ30-1000 1000 1237 1600 1660 223

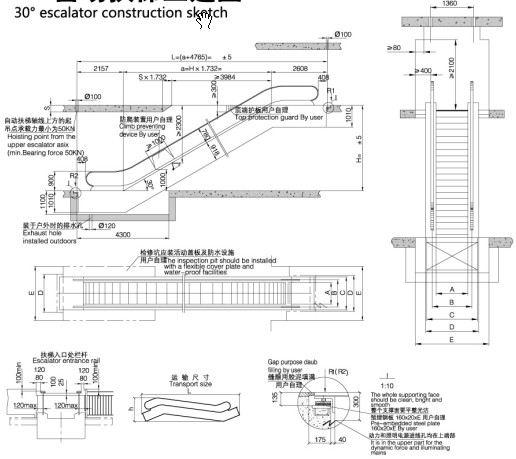

30 degree escalator layout:



35 degree escalator specification:

Model NO. FSJ35-600(4000P/Hour) FSJ35-800(6750P/Hour) FSJ35-1000(9000P/Hour)
Travel height Static load Motor Static load Motor Static load Motor
N.W. R1 R2 Pauer N.W. R1 R2 Pauer N.W. R1 R2 Pauer
MM KN KN KN KN KN KN KN KN KN KN KN KN
3000 54 43 39 5.5 56 49 44 5.5 60 56 50 5.5
3500 57 43 41 5.5 60 52 47 5.5 64 60 53 8.0
4000 60 49 44 5.5 63 56 50 5.5 67 64 57 8.0
4500 64 52 46 5.5 66 59 53 8.0 71 67 60 8.0
5000 67 54 49 8.0 70 62 56 8.0 74 71 64 8.0
5500 70 57 51 5.5 73 65 59 8.0 82 77 69 11
6000 73 60 54 8.0 76 69 61 8.0 85 81 72 11
Model NO. A B C D E
FSJ35-600 600 837 1200 1260 1837
FSJ35-800 800 1037 1400 1460 2037
FSJ35-1000 1000 1237 1600 1660 2237

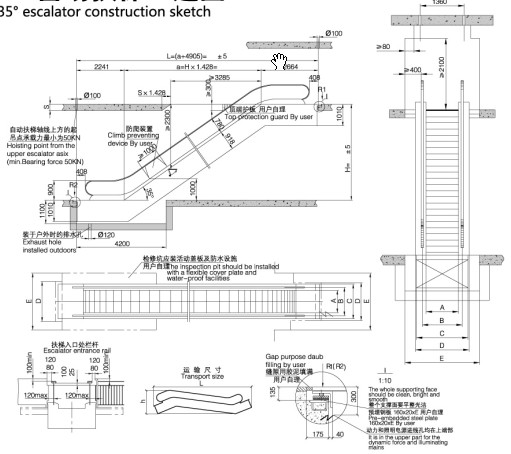

35 degree escalator layout:

Function:

Standard function:
1 Stairway light
2 Drive chain safety device
3 Skirt panel brush
4 Handrail entry safety protection
5 Emergency stop button
6 Antibiotic handrail
7 Automatic lubricator
8 Comb teeth safety device
9 Step loss protection device
10 Step chain safety  device
11 Skirt safety device
12 Step sag protection
13 Drive chain protection device
14 Phase failure and phase loss protection
15 Non-operational reversal safety device

Note:The above data is only for your reference. If you have any special request ,pls do not hesitate to contact with us anytime .
