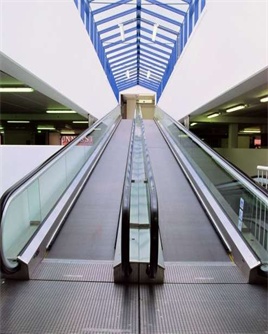

Moving Walk
  • >
  • PRODUCTS
  • >
  • Moving Walk



Product detail:

1.Energy-saving and environmental protection running

Fushijia moving walk fully apply the advanced manufacture craft and technology. It greatly enhances the product properties, prolongs the service cycle of the elevator. It directly reduces the operation cost of the clients. Optional variable frequency drive technology gets the noticeable energy-saving effects. It cuts off the elevator running cost to the greatest extent
2. Safety devices

Fushijia moving walks set a series of safety protection devices. Its electrical control system applies fully computerized control. When there is something wrong in the running process, it can promptly cut off the power supply .The application of multiple energy-saving technologies saves the running cost for vast users at all times. Its unique shock-absorbing and noise-reducing structure lets the passengers enjoy the smooth, peaceful and comfortable travel.

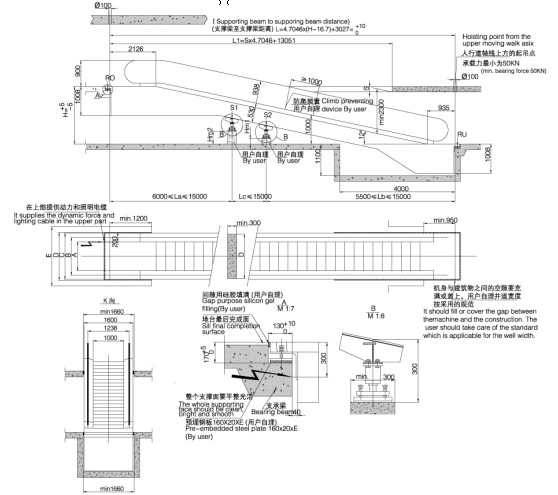

Moving walk layout:



Moving walk specification:

The  construction support includes the vibration load
No center support One center support Two center support
RO=0.0045*L+11 RO=0.0045*La+11 RO=0.0045*La+11
RU=0.045*Lb+5 RU=0.045*Lb+5
RU=0.045*L+5 S1=0.00585*(La+Lb) S1=0.00585*(La+Lc)
/ S2=0.00585*(Lb+Lc)


Travel height Center support La(m) Lb(mm) Lc(mm)
TROM TO S1 S2
1601 2663 / / / / /
2664 4151 1 / L-7000 7000 /
4152 5851 1 / 15000 L-15000 /
5852 6000 1 1 15000 7000 L-22000


Balustrade,Handrail colors for your choosing:




Function:

Standard function:
1 Stairway light
2 Drive chain safety device
3 Skirt panel brush
4 Handrail entry safety protection
5 Emergency stop button
6 Antibiotic handrail
7 Automatic lubricator
8 Comb teeth safety device
9 Step loss protection device
10 Step chain safety  device
11 Skirt safety device
12 Step sag protection
13 Drive chain protection device
14 Phase failure and phase loss protection
15 Non-operational reversal safety device

Note:The above data is only for your reference. If you have any special request ,pls do not hesitate to contact with us anytime .
