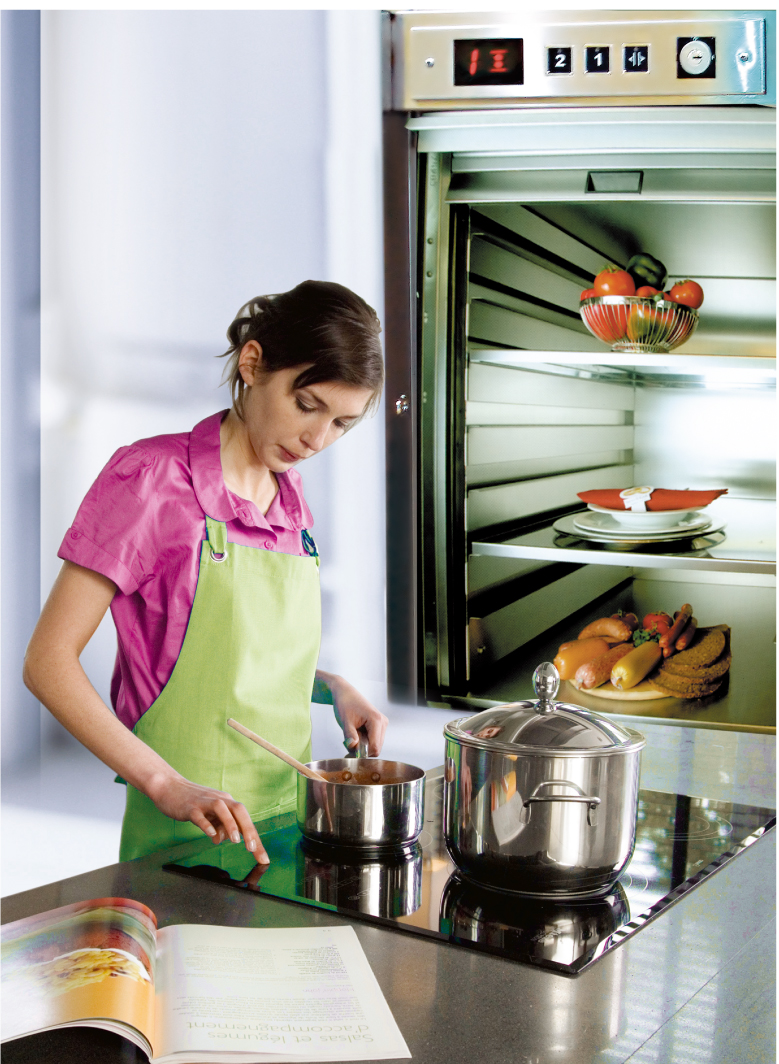

Dumbwaiter Elevator
  • >
  • PRODUCTS
  • >
  • Dumbwaiter Elevator

Standard decoration:


Ceiling:Hairline stainless steel
Car wall: Hairline stainless steel
Car door:Hairline stainless steel
Landing door:Hairline stainless steel


Dumbwaiter elevator specification:

Load(kg) Speed(m/s) Car net size(mm) Net door dimension(2-panel)(mm) Shaft  inside dimension(mm) Working mode
Width(AC) Depth (CB) Width(M) Height(HH) Width(AH) Depth (BH) PP OH
100 0.4 750 750 700 1000 1250 900 750 3500 Working table
200 0.4 1000 1000 950 1200 1450 1150 1000 3800 Ground level style
250 0.4 1000 1000 950 1200 1600 1400 1000 3800 Ground level style
300


Function:

Standard function:
Travel function 1 Automatic running
2 Attendant running
3 Automatically adjust door opening time
4 Door reopen at current floor
5 Arrival gong
6 Car call cancel
7 parking
Safety function 8 Light curtain protection
9 Overload stop
10 Inspection operation
11 Fault self-diagnosis
12 Auto-landing with fault
13 Door close repeat
14 Top/bottom limit and final limit protection
15 Down running protection
16 Up running protection
17 Safety circuit protection
18 Door interlock protection
19 Main contactor protection
20 Brake detecting protection
Human-machine Interface 21 Micro-touch button
22 Running state display
23 No stop floor set
24 Homing floor set
25 Hoistway self-learning
Emergency function 26 Emergency lighting
27 Emergency electric operation
28 Five-way intercom
29 Alarm bell
Energy-saving function 30 fan/light automatic shut-off
Optional Function
Emergency function 1 Auto Rescue Device(ADR)
Travel function 2 Door close delay
3 Fire emergency return
4 Duplex control
5 Double door control
Human-machine Interface 6 Car assistant operation box
7 IC card control function
Monitor function 8 Traction machine monitor

Note:The above data is only for your reference. If you have any special request ,pls do not hesitate to contact with us anytime.
