Product detail:

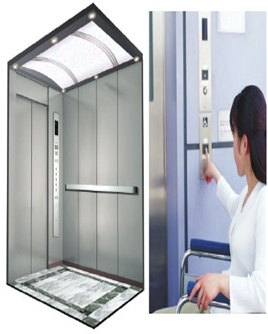

1.Special functions for the disabled: It applies horizontal installation of buttons in the elevator car. It also prints braille in the buttons. It is convenient for the disabled to enter into / exit from the elevator.
2.It prolongs time-delay door-closing. After the elevator fully opens the door, it keeps door-opening. After time-delay, it automatically closes the door. It is convenient for the medical staff to safely enter into / exit from the elevator.




Hospital elevator specification:

Load(kg) Persons Speed(m/s) Door open type Entrance Car net size Shaft inside dimension Machine room size
(JJ*HH)mm (AA*BB)mm (AH*BH)mm PP OH (W*D)mm
Single Opposite(optional)
1600 21 0.63/1.0 2-panel side opening 1200*2100 1400*2400 2400*3000 2400*3060 1500 4500 3200*4200*2800
1.5/1.75 1800 4800
0.63/1.0 Center-opening 1000*2100 2500*2900 2500*2930 1500 4500
1.5/1.75 1800 4800
2000 26 0.63/1.0 2-panel side opening 1300*2100 1500*2700 2500*3300 2500*3360 1500 4500 3300*4300*2800
1900
Center-opening 1100*2100 2600*3200 2600*3230 1500
1900


MRL hospital elevator specification:

Load(kg) Persons Speed(m/s) Entrance Car net size Shaft inside dimension
(JJ*HH)mm (AA*BB)mm (AH*BH)mm PP OH
630 8 1.0 800*2100 1300*1250 2250*1700 1600 4000
1.5/1.75 1800 4300
800 10 1.0 800*2100 1400*1400 2400*1900 1600 4200
1.5/1.75 1800 4500
1000 13 1.0 900*2100 1500*1600 2500*2100 1600 4200
1.5/1.75 1800 4500
1600 21 0.63/1.0 1000*2100 1900*1850 3000*2400 1600 4600
2.0/2.5


Function:

Standard function:
Travel function 1 VVVF drive
2 VVVF door operator
3 Independent running
4 Automatic pass without stop
5 Automatically adjust door opening time
6 Reopen with hall call
7 Express door closing
8 Car stops and door open
9 Car arrival gong
10 Command register cancel
Safety function 11 Light curtain protection
12 Designated stop
13 Overload holding stop
14 Anti-stall timer protection
15 Start protection control
16 Inspection operation
17 Fault self-diagnosis
18 Repeated door closing
19 Up/down over-run and final limit protection
20 Down over-speed protection device
21 Up over-speed protection device
Human-machine Interface 22 Micro-touch button for car call and hall call
23 Floor and direction indicator inside car
24 Floor and direction indicator
Emergency function 25 Emergency lighting
26 Inching running
27 Five way intercom
28 bell
29 Fire emergency return
Energy-saving function 30 Car fans/lighting automatic shut-off
31 Remote shut-off
Optional Function
Emergency function 1 Leveling when power off
Travel function 2 Anti-nuisance
3 Open the door in advance
4 Direct parking
5 Group control function
6 Duplex control
7 On-duty peak service
8 Off-duty peak service
9 Door open time extending
Human-machine Interface 10 Voice announcer
11 Car assistant operation box
12 Operation box for the handicapped
13 Intelligent calling service
14 IC card control function
Monitor function 15 Remote monitor
16 Remote control
17 Car camera

Note:The above data is only for your reference. If you have any special request ,pls do not hesitate to contact with us anytime .
